High Speed Vertical CNC Milling Tshuab

Daim ntawv thov Field Applied: Aviation, tsheb, pwm, shipbuilding, electromechanical, tshuab cuab yeej, luam ntawv, textile thiab lwm yam machinery manufacturing industries. 1.Lub X / Y / Z peb-axis txais kev ua haujlwm siab-txhim kho cov kab zawv zawg los xyuas kom meej qhov chaw ntawm cov tshuab thaum lub sijhawm ...

Xa kev nug

Muaj nuj nqi

Daim ntawv thov teb

Siv: Aviation, tsheb, pwm, nkoj tsim, electromechanical, tshuab cuab yeej, luam ntawv, textile thiab lwm yam machinery manufacturing industries, 3 Axis CNC Milling Tshuab.

product-838-641

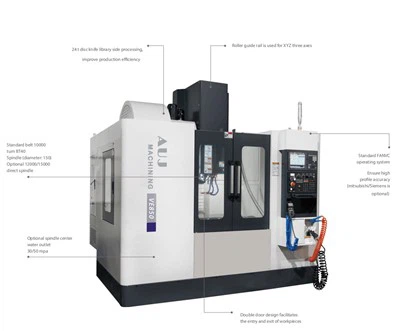

1.Vertical Machine Center, Ve peb kab ntsug machining chaw txais yuav X / Y / Z peb-axis high-precision linear swb ntsia kom paub meej qhov chaw ntawm lub tshuab thaum lub sijhawm ua haujlwm siab 3 Axis CNC Milling Tshuab;

2.CNC Tig Machining Tshuab dhos, Cov khoom tseem ceeb ntawm lub tshuab no, xws li lub txaj thiab ntxaiv, yog ua los ntawm Mihanna cam khwb cia hlau. Tom qab 3D dynamic finite element tsom xam, nws muaj kev ruaj ntseg zoo thiab siab zog, ua kom ruaj khov thiab txhim khu kev qha high-speed txiav raug Vertical Machine Center;

3.Peb-axis kis tau tus mob pob ntsia hlau txais Taiwan tus C3 qib txiv ntoo khub pob ntsia hlau, thiab lub cev muaj zog kawg thiab tus Tsov tus tw kawg bearings ntawm lub pob ntsia hlau siv txawv teb P4 qib sib xyaw tshwj xeeb high-speed bearings, CNC ntsug machining chaw,

Peb axis pob ntsia hlau yog ua ntej ncab thiab muaj kev ua haujlwm ruaj khov. Ib qho kev txhawb nqa mechanism yog ntsia los txhim kho qhov ua tau zoo ntawm axial fais fab kis CNC tig Machining Tshuab dhos;

4.Extra wide puag, widened thiab ncua eeb. Lub "tib neeg" zoo li tus qauv tsim muaj cov qauv ruaj khov, ua kom muaj kev ruaj ntseg thiab muaj peev xwm thauj khoom thaum muaj kev kub ceev CNC ntsug machining chaw;

5.Qhov peb-axis txais European P-chav kawm, cov kab ntawv qhia cov menyuam txoj kev tsheb nqaj hlau, uas tuaj yeem txhawb nqa hnyav thiab txav nrawm kom ntseeg tau qhov tseeb;

Khoom nta

Heavy luag hauj lwm ntsug machining chaw, Ve peb kab ntsug machining chaw yog tsim rau ua daim hlau, daim hlau, pwm thiab me me plhaub complex qhov chaw. Daim npav thauj khoom tuaj yeem ua tiav milling, tho txawv, drilling, tapping thiab txiav xov thiab lwm yam txheej txheem. High-precision rail thiab txhuas ntsia hlau yog siv los paub txog kev txiav ceev. 3C cov khoom, kho vajtse, tsheb qhov chaw, khoom siv kho mob kev lag luam yog dav siv.

		AUJ-VE1055	AUJ-VE1160	AUJ-VE1370	AUJ-VE1580
Worktable loj	mm	1200X550	1200X600	1400X700	1600X800
Qhov siab tshaj plaws load	Kg	700	900	1600	1800
T qhov	mm	5X18X90	5X18X100	5X18X100	7X22X110
Kev ua ntau yam
Tabie max stroke-Xaxt	mm	1000	1100	1300	1500
Maotmum tavel ofslding sett-Yads	mm	550	600	700	800
Maotmum tavel ofspinde-Zaots	mm	550	600	700	750
Daunca femapindleind rau wak surfac	mm	150-680	150-720	120-820	190-890
Thawj axis
Main specifications		BT40	BT40/BT50	BT40/BT50	BT40/BT50
Spindle dihe hom		Txoj siv tawv / ncaj hom	Txoj siv tawv / ncaj hom	Txoj siv tawv / ncaj hom	Txoj siv tawv / ncaj hom
Spindle ceev	rpm ua	10000/12000	8000/10000/12000	6000/10000/12000	6000/10000/12000
Pub ceev
X axis	m/min	36	30	30	30
Y axis	m/min	36	30	30	30
Z axis	m/min	36	30	24	24
Lub cev muaj zog
Spindle lub cev muaj zog	Kw	11-15	11-15	15-18.5	15-185
X axis	Kw	3	3	3	3
Yaxis	Kw	3	3	3	3
Zaxis	Kw	3	3	3	3
Cov cuab yeej cia tsis
Dao database	T	24	24	24	24
Riam tsev qiv ntawv hnyav	Kg	8	8	8	8
Tool ntev	mm	300	300	300	300
Qhov siab kawg ntawm lub taub hau	mm	78-120	78-120	78-120	78-120
Txoj kev tshem tawm nti		Ob chav helix array	Ob chav helix array	Ob chav helix array	Ob chav helix array
Qhov hnyav	Kg	6000	6800	8200	12000
Tag nrho qhov ntev	mm	2700X2450X2550	2950X2530X2600	850X2730X2900	4050X2930X3200
